Ubiquiti UniFi 8 Port Low Power non POE (US-8-AU)

Ubiquiti UniFi 8 Port Low Power non POE (US-8-AU)
  • 39948_thumb_P_1503973047861
  • 39948_thumb_P_1503973102561
  • 39948_thumb_P_1503973102346
  • 39948_thumb_P_1503973102046
  • 39948_thumb_P_1503973102028
$169.0
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

Next Day Dispatch - Order within 10hrs and 59mins

- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Ubiquiti UniFi 8 Port Low Power non POE (US-8-AU)
  • Model Number:
    US-8-AU
  • Brand:
  • Manufacturer Warranty:
    0 Year

Description

Ubiquiti UniFi 8 Port Low Power non POE

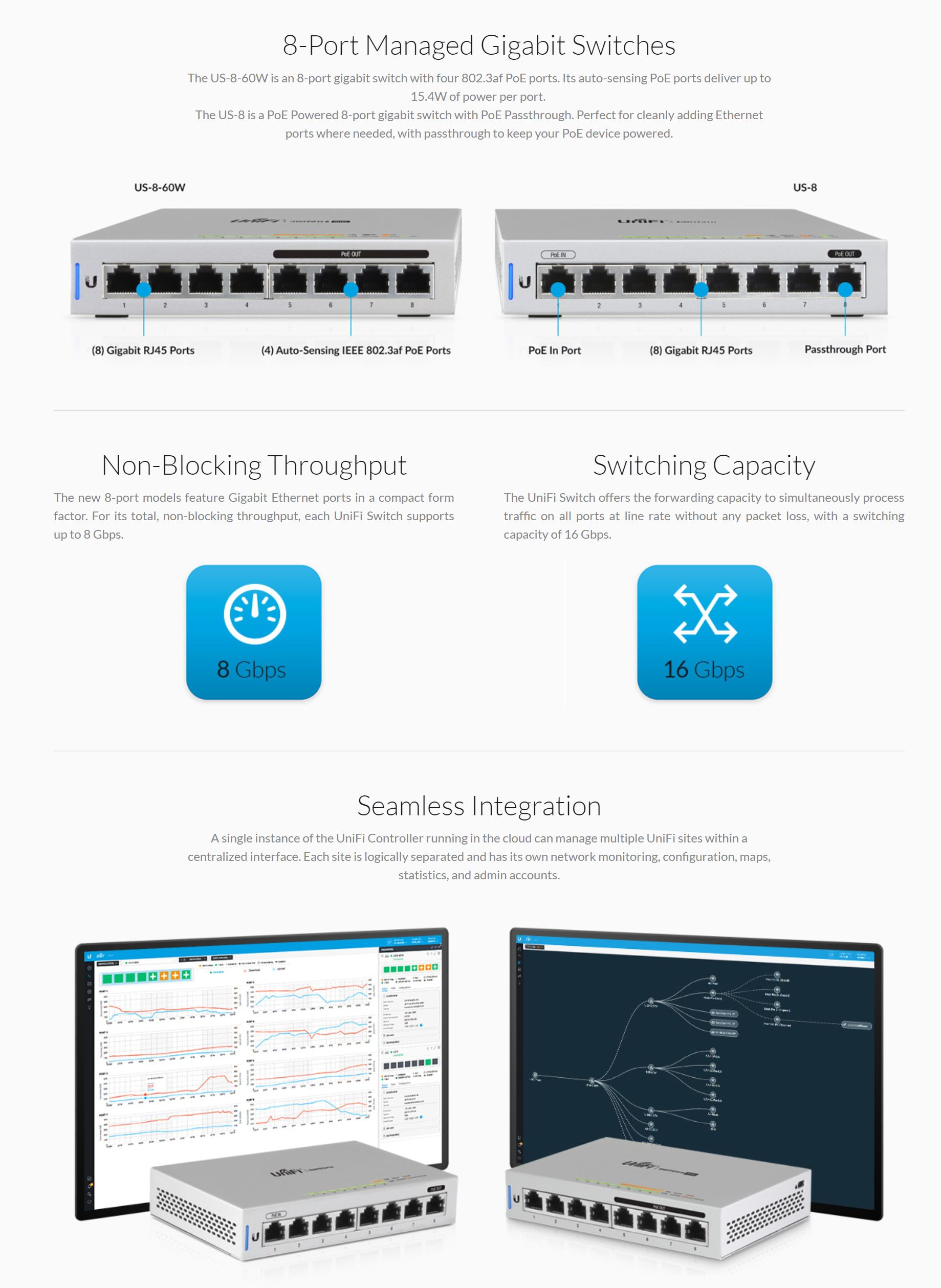

The UniFi Switch 8-port models feature Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching for your networks.


Ubiquiti UniFi 8 Port Low Power non POE (US-8-AU)


Specifications


DIMENSIONS

148.0 x 99.5 x 30.7 mm (5.83 x 3.92 x   1.21")

WEIGHT

432 g (15.24 oz)

ENCLOSURE CHARACTERISTICS

SGCC Steel

TOTAL NON BLOCKING THROUGHPUT

18 Gbps

SWITCHING CAPACITY

16 Gbps

FORWARDING RATE

11.9 Mpps

MAX. POWER CONSUMPTION

12W (Excluding PoE Output)

MAX. PASSIVE POE WATTAGE PER PORT

PoE Mode 1: 12W @ 802.3at

PoE Mode 2: 12W @ 48V

DC Input Mode: 12W @ 48V

PASSIVE POE VOLTAGE RANGE

Depends on Power Source

POWER METHOD

(1) DC 48V, Max. 1.25A

(1) PoE Input, 802.3 af/at (Pins +1, 2; -3,   6)

SUPPORTED VOLTAGE RANGE

DC: 48V; 48V Mode: 56V to 40V

POWER SUPPLY

External AC/DC Adapter, 48V, 0.5A

LEDS

PoE (Port 8), Speed/Link/Activity (All Ports)

SOUND LEVEL*

0.7 dBr (Fanless)

NETWORKING INTERFACES

(8) 10/100/1000 Mbps RJ45 Ports

POE IN INTERFACE (PORT 1)

PoE Mode 1: 802.3af/at (Pins +1, 2; -3, 6)

PoE Mode 2: 48V (2-Pair Pins +4, 5; -7, 8)

POE OUT INTERFACE (PORT 8)

PoE Mode 1: 48V (Pins +1, 2; -3, 6)

PoE Mode 2: Passive 48V

(2-Pair Pins +4, 5; -7, 8)

DC Input Mode: DC Passthrough

(Pins +1, 2; -3, 6)

MANAGEMENT INTERFACE

Ethernet In-Band Management

ESD/EMP PROTECTION

Air: ± 24 kV, Contact: ± 24 kV

OPERATING TEMPERATURE

-5 to 45° C (23 to 113° F)

OPERATING HUMIDITY

5 to 95% Noncondensing

SHOCK AND VIBRATION

ETSI300-019-1.4 Standard

CERTIFICATIONS

CE, FCC, IC

* Background noise level: 27.5 dBa
