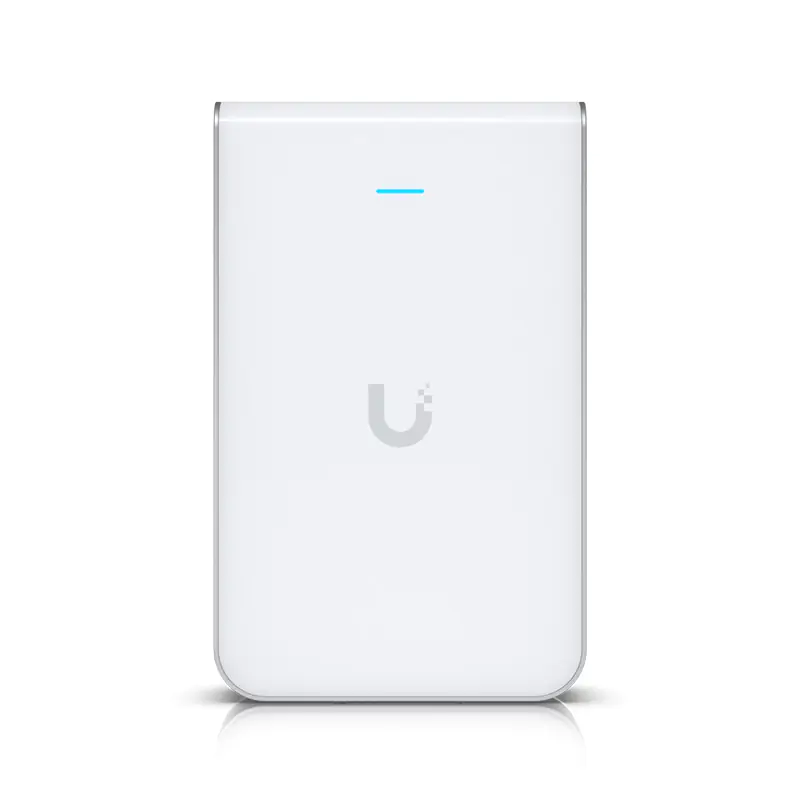

Ubiquiti UniFi AC In-Wall Access Point
Ideal for new and retrofit installations, the UniFi® AC In-Wall is designed to convert an Ethernet wall jack into a dual-band 802.11ac Wi-Fi access point with two Gigabit Ethernet ports.
Specifications
DIMENSIONS | 139.7 x 86.7 x 25.75 mm (5.5 x 3.41 x  1.01") | WEIGHT | 200 g (6.43 oz) | NETWORKING INTERFACE | (3) 10/100/1000 Ethernet Ports | BUTTONS | Reset | POWER METHOD | 802.3at PoE+ Supported | POWER SUPPLY | UniFi PoE Switch (Not Included) | POWER SAVE | Supported | POE OUT | 48V Pass-Through (Pins 1, 2+; 3, 6-) | MAX. POWER CONSUMPTION WITH POE PASSTHROUGH | 7W 19W* | MAX. TX POWER 2.4GHZ 5GHZ |  20 dBm 20 dBm | ANTENNAS 2.4GHZ 5GHZ | (1) Dual-Band Antenna, Single-Polarity 1 dBi 2 dBi | WIFI STANDARDS | 802.11 a/b/g/n/r/k/v/ac | WIRELESS SECURITY | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2,  TKIP/AES) | BSSID | Up to 8 per Radio | MOUNTING | 1-Gang Electrical Wall Box (Not Included) | OPERATING TEMPERATURE | -10 to 50° C (14 to 122° F) | OPERATING HUMIDITY | 5 to 95% Noncondensing | CERTIFICATIONS | CE, FCC, IC | ADVANCED TRAFFIC MANAGEMENT | VLAN | 802.1Q | ADVANCED QOS | Per-User Rate Limiting | GUEST TRAFFIC ISOLATION | Supported | WMM | Voice, Video, Best Effort, and Background | CONCURRENT CLIENTS | 250+ | SUPPORTED DATA RATES (MBPS) | STANDARD | Data Rates | 802.11AC | 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT  20/40/80) | 802.11N | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) | 802.11A | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | 802.11G | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | 802.11B | 1, 2, 5.5, 11 Mbps |
* Requires 802.3at PoE+ switch
|
