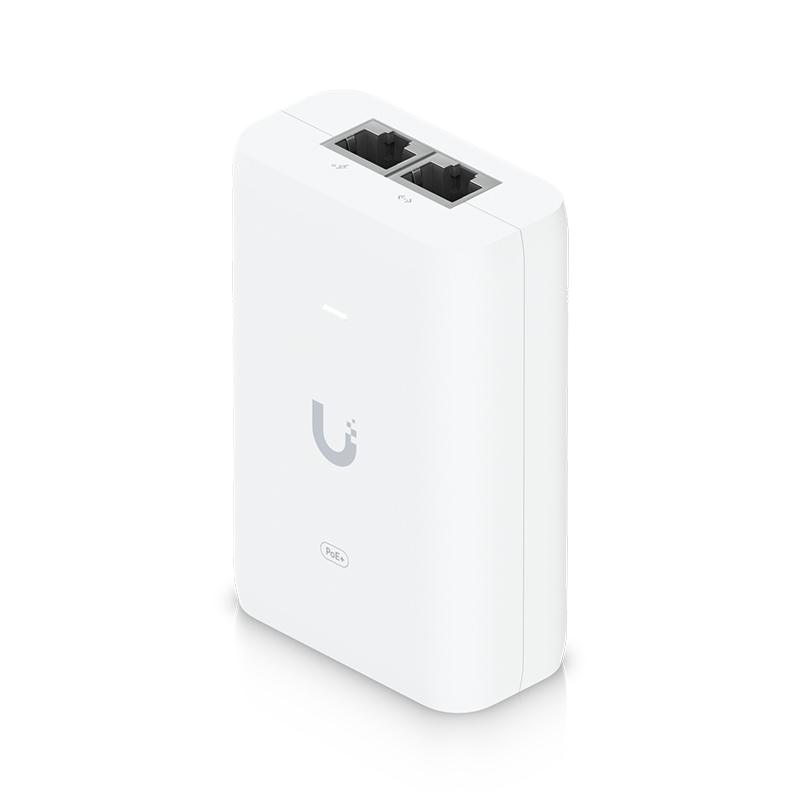

Ubiquiti UniFi PoE+ Adapter 30W Gigabit Injector (U-POE+)

Weight

156 g (5.5 oz)

Power Cable

Included

Output Voltage

48V DC @ 0.65A

Rated Voltage

100–240V AC at 50/60Hz

Gigabit LAN Port

✓

2-pair Powering

Pins 4, 5 (+) and 7, 8 (-)

AC Connector

IEC-320 C6

Clamping Protection

11V Data, 60V power

Data In / PoE

RJ45 Shielded Socket

Input Current

0.75A Max.

Inrush Current

<100A peak at 26°C

Efficiency

87%

Switching Frequency

70 kHz Max.

Output Ripple

1% Max.

Line Regulation

≤ 3%

Load Regulation

≤ 5%

Max. Surge Discharge

1500A (8/20 μs) power

Peak Pulse Current

36A (10/1000 μs) data

Response Time

<1 ns

Shunt Capacitance

<5 pF data

Surge Protection

Difference and common mode

Ambient Storage Temperature

-30 to 70°C (-22 to 158° F)

Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Ambient Operating Humidity

10 to 95% noncondensing

NDAA Compliant

✓

Certifications

CE, FCC, IC, UL, CCC
