Vacuum Clamp Pod, Aluminum CNC Hold Down Kit for Woodworking, Metal, Acrylic, High-Precision CNC Router Accessory for Milling Project, Size 4.7" x 4"

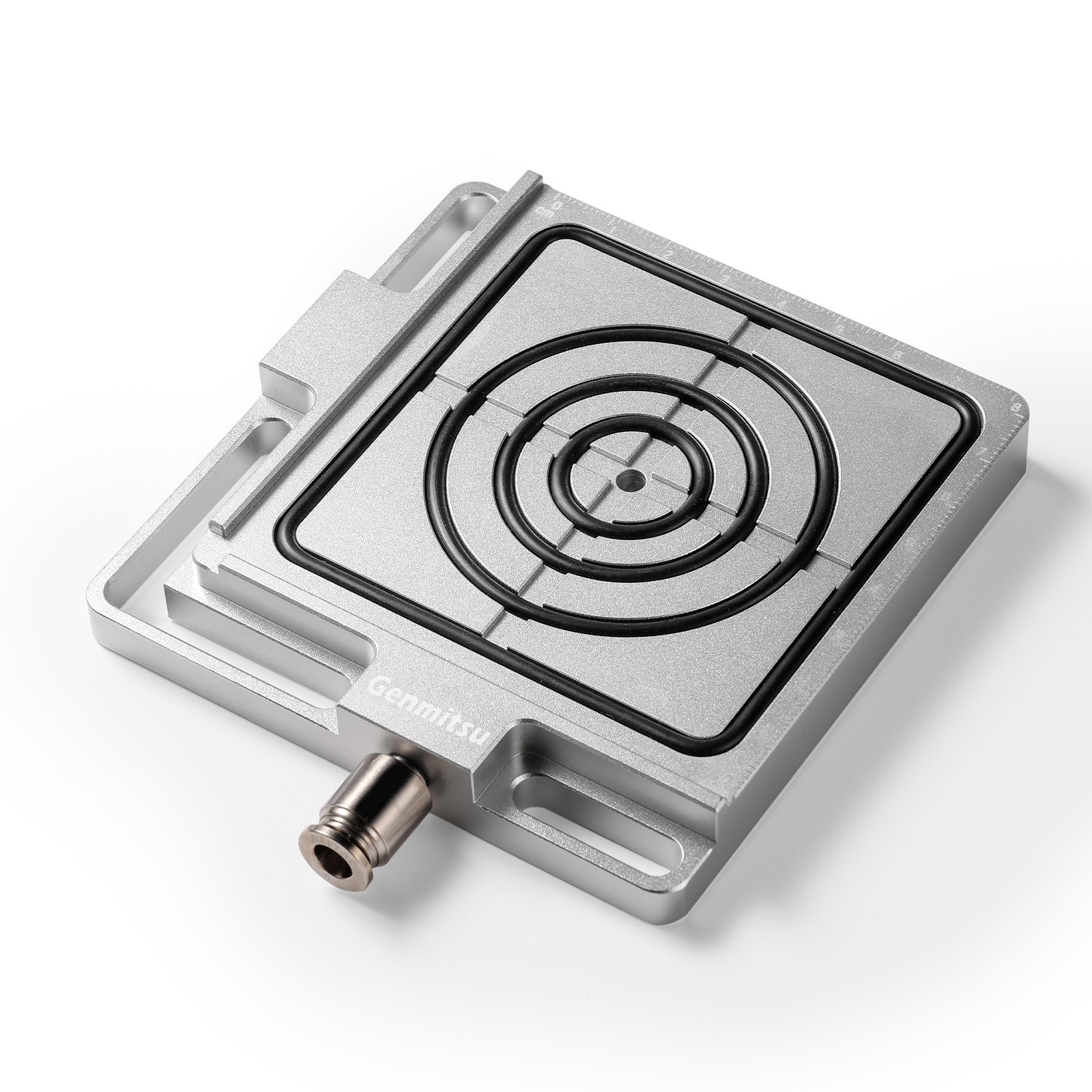

Aluminum vacuum clamp pod (120×102×15 mm) holds 24‑95 mm workpieces via vacuum pump, works on wood, acrylic, metal, etc., fits M6 screws/T‑nuts on T‑slot or MDF/Al spoilboards, includes air tubes & fittings.
Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

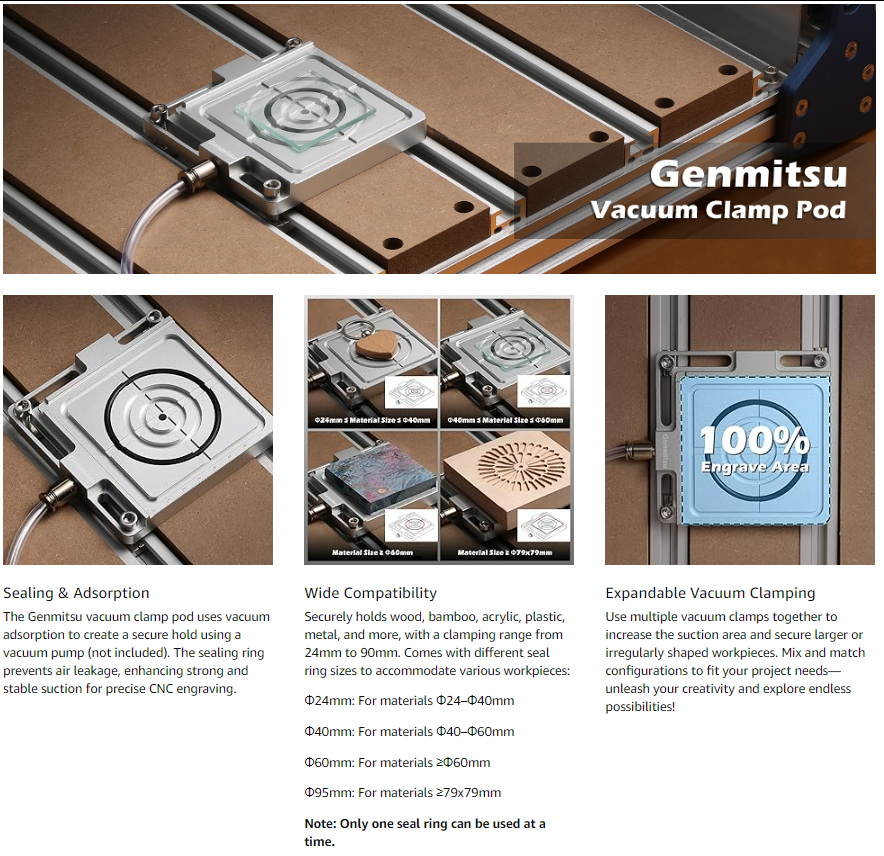

Vacuum Holding: Securely holds workpieces from as small as a 24mm coin to as large as a 90mm wooden block using a vacuum pump, saving time searching for a suitable clamp while preserving 100% of the engraving area.
Designed for Diverse Materials: Works with wood, acrylic, plastic, metal, etc., including irregularly shaped objects, as long as the side placed on the vacuum chuck is flat enough to cover the entire rubber sealing area. Note: Only one seal ring can be used at a time.
Universal CNC Compatibility: Equipped with M6 screws and M6 T-nuts, making it easy to mount on MDF/aluminum board with M6 screw holes or a hybrid table with a T-slot track. Compatible with Genmitsu CNC machines and most CNC routers on the market.
Durable Construction: Constructed from high-quality aluminum for superior strength. The vacuum pod surface is marked with a length scale for quick and accurate measurements.
Vacuum Connection: This vacuum pod kit must be used with a vacuum pump (not included). The package includes Φ6mm and Φ8mm air tubes, as well as Φ6mm to Φ8mm and Φ8mm to Φ10mm air hose connectors to fit most vacuum pump systems.
Specifications
Material
Aluminium
Product Size
120 x 102 x 15mm
Material Range
24mm to 95mm
Weight
67g/pcs
Compatibility
T-Slot Track Hybrid Spoilboard, MDF Spoilboard with M6 screw holes, MDF Spoilboard, Aluminum Spoilboard with M6 screw holes
Package List:
1 x Vacuum Clamp Pod
1 x Pneumatic Air Fitting
1 x Straight Air Tube Fitting 6mm to 8mm
1 x Straight Air Tube Fitting 8mm to 10mm
2 x Φ24mm Suction Area Rubber
2 x Φ40mm Suction Area Rubber
2 x Φ60mm Suction Area Rubber
2 x Φ95mm Suction Area Rubber
3 x M6x20 Hexagon Socket Screw
2 x M6x12 Hexagon Socket Screw
3 x M6 T-Nuts
1 x Allen Wrench
1 x Φ6mm Air Tube
1 x Φ8mm Air Tube
1 x User Manual
