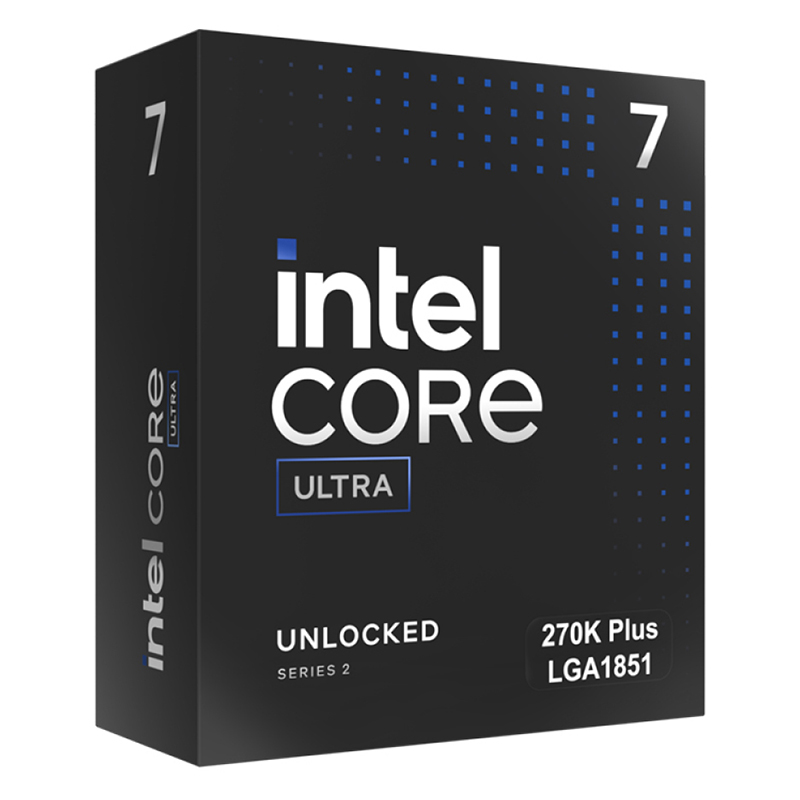

Intel Core Ultra 7 270K Plus LGA 1851 5.50GHz CPU Processor (BX80768270K)

Product Collection

Intel® Core™ Ultra Processors (Series 2)

Code Name

Products formerly Arrow Lake

Vertical Segment

Desktop

Processor Number

270K Plus

Overall Peak TOPS (Int8)

36

CPU SPECIFICATIONS

Total Cores

24

# of Performance-cores

8

# of Efficient-cores

16

# of Low Power Efficient-cores

0

Total Threads

24

Max Turbo Frequency

5.5 GHz

Intel® Turbo Boost Max Technology 3.0 Frequency*

5.5 GHz

Performance-core Max Turbo Frequency

5.4 GHz

Efficient-core Max Turbo Frequency

4.7 GHz

Performance-core Base Frequency

3.7 GHz

Efficient-core Base Frequency

3.2 GHz

Cache

36 MB Intel® Smart Cache

Total L2 Cache

40 MB

Processor Base Power

125 W

Maximum Turbo Power

250 W

Intel® Deep Learning Boost (Intel® DL Boost) on CPU

Yes

AI Software Frameworks Supported by CPU

OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

CPU Lithography

TSMC N3B

SUPPLEMENTAL INFORMATION

Embedded Options Available

No

Use Conditions

PC/Client/Tablet, Workstation

MEMORY SPECIFICATIONS

Max Memory Size (dependent on memory type)

256 GB

Memory Types

Up To DDR5 7200 MT/s

Max # of Memory Channels

2

ECC Memory Supported*

Yes

GPU SPECIFICATIONS

GPU Name*

Intel® Graphics

Graphics Base Frequency

300 MHz

Graphics Max Dynamic Frequency

2 GHz

GPU Peak TOPS (Int8)

8

Graphics Output

eDP1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL

Xe-cores

4

Max Resolution (HDMI)*

4096 x 2304 @ 60Hz (HDMI 2.1 TMDS)

7680 x 4320 @ 60Hz (HDMI 2.1 FRL)

Max Resolution (DP)*

7680 x 4320 @ 60Hz

Max Resolution (eDP - Integrated Flat Panel)*

3840 x 2400 @ 120Hz

DirectX* Support

12

OpenGL* Support

4.5

OpenCL* Support

3

H.264 Hardware Encode/Decode

Yes

H.265 (HEVC) Hardware Encode/Decode

Yes

AV1 Encode/Decode

Yes

Intel® Quick Sync Video

Yes

# of Displays Supported*

4

Device ID

0x7D67

Intel® Deep Learning Boost (Intel® DL Boost) on GPU

Yes

AI Software Frameworks Supported by GPU

OpenVINO™, WindowsML, DirectML, ONNX RT, WebGPU

NPU SPECIFICATIONS

NPU Name*

Intel® AI Boost

NPU Peak TOPS (Int8)

13

Sparsity Support

Yes

Windows Studio Effects Support

Yes

AI Software Frameworks Supported by NPU

OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

EXPANSION OPTIONS

Direct Media Interface (DMI) Revision

4

Max # of DMI Lanes

8

Intel® Thunderbolt™ 4

Yes

Scalability

1S Only

PCI Express Revision

5.0 and 4.0

PCI Express Configurations*

Up to 1x16+2x4, 2x8+2x4, 1x8+4x4

Max # of PCI Express Lanes

24

PACKAGE SPECIFICATIONS

Sockets Supported

FCLGA1851

Thermal Solution Specification

PCG 2020A

Max Operating Temperature

105 °C

Package Size

45 mm x 37.5 mm

ADVANCED TECHNOLOGIES

Intel® Gaussian & Neural Accelerator

3.5

Intel® Thread Director

Yes

Intel® Speed Shift Technology

Yes

Intel® Turbo Boost Max Technology 3.0*

Yes

Intel® Turbo Boost Technology*

2.0

Intel® Hyper-Threading Technology*

No

Intel® 64*

Yes

Instruction Set

64-bit

Instruction Set Extensions

Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

Idle States

Yes

Enhanced Intel SpeedStep® Technology

Yes

Thermal Monitoring Technologies

Yes

Intel® Volume Management Device (VMD)

Yes

SECURITY & RELIABILITY

Intel vPro® Eligibility*

Intel vPro® Enterprise

Intel® Threat Detection Technology (TDT)

Yes

Intel® Active Management Technology (AMT)*

Yes

Intel® Standard Manageability (ISM)*

Yes

Intel® Remote Platform Erase (RPE)*

Yes

Intel® One-Click Recovery*

Yes

Intel® Secure Key

Yes

Intel® Control-Flow Enforcement Technology

Yes

Intel® Total Memory Encryption - Multi Key

Yes

Intel® AES New Instructions

Yes

Intel® Trusted Execution Technology*

Yes

Execute Disable Bit*

Yes

Intel® OS Guard

Yes

Intel® Boot Guard

Yes

Mode-based Execute Control (MBEC)

Yes

Intel® Stable IT Platform Program (SIPP)

Yes

Intel® Virtualization Technology with Redirect Protection (VT-rp)*

Yes

Intel® Virtualization Technology (VT-x)*

Yes

Intel® Virtualization Technology for Directed I/O (VT-d)*

Yes

Intel® VT-x with Extended Page Tables (EPT)*

Yes

OTHERS

Notes

* This feature may not be available on all computing systems. Please check with the   system vendor to determine if your system delivers this feature, or reference the system specifications (motherboard, processor, chipset, power supply, HDD, graphics controller, memory, BIOS, drivers, virtual machine monitor-VMM, platform software, and/or operating system) for feature compatibility  Functionality, performance, and other benefits of this feature may vary depending on system configuration.
